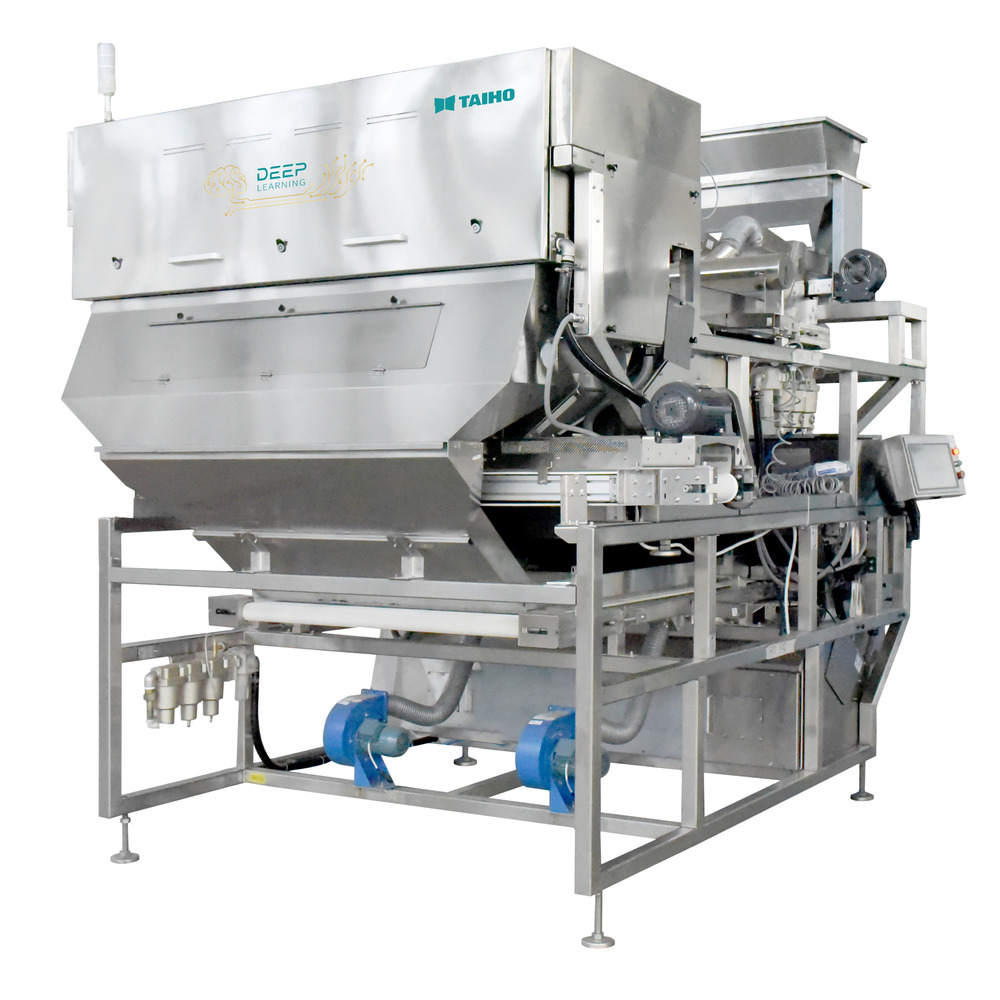

Double Layer Nut Sorting Machine

Get a Price/Quote

MOQ : 1 Unit

Double Layer Nut Sorting Machine Specification

Air Compressor
Required (external, not included)

Type
Double Layer Nut Sorting Machine

Usage
Sorting and grading nuts by size and quality

Accuracy
99%

Channels
2 layers, 6 channels/layer

Capacity
300-600 kg/h

Power
220V/50Hz, 1.2kW

Dimension (L*W*H)
2000 x 900 x 1680 mm

Output
Up to 6000 pieces/min

Weight
380 kg

Air Pressure
0.5-0.7 MPa

Application
Cashew, peanut, almond, macadamia, pistachio, walnut, and other nuts processing

Cleaning Function
Self-cleaning system

Noise Level
< 70 dB

Feeding System
Vibratory hopper feeder with adjustable flow

Control System
PLC touchscreen interface

Suitable Nut Size Range
2-23 mm

Material
Food-grade stainless steel

Operating Temperature
5-40C

Installation Type
Floor-standing

Operator Requirement
1 person

Defective Rejection Rate
0.3%

Data Output
Supports USB data export

Sorting Method
Photoelectric sensor & air-jet ejection

Double Layer Nut Sorting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
15 Units Per Month

Delivery Time
2-10 Days

Main Domestic Market
All India

About Double Layer Nut Sorting Machine

Experience the extraordinary performance of the Best-seller Double Layer Nut Sorting Machine, acclaimed for delivering unmatched value in commercial nut processing. This redoubtable machine utilizes advanced photoelectric sensor and air-jet ejection methods to achieve 99% sorting accuracy and a remarkable 0.3% defective rejection rate. Its PLC touchscreen interface ensures user-friendly control, while the self-cleaning system guarantees seamless operation. Designed with food-grade stainless steel for lasting durability, this floor-standing model offers an impressive capacity and is available for a limited time-secure the best deal for your business today!

Versatile Applications and Exceptional Utility

The Double Layer Nut Sorting Machine is expertly engineered for diverse applications across nut processing industries. It is ideal for sorting and grading cashew, peanut, almond, macadamia, pistachio, walnut, and more based on size and quality. Renowned among manufacturers, suppliers, and traders in India, this machine supports processing lines with high efficiency. Users benefit from its swift operation, reduced noise, and user-centric operation requiring just one person for seamless performance.

Sample Availability, Export Markets, and Convenient Purchase

Samples of the Double Layer Nut Sorting Machine are available for evaluation prior to full purchase, facilitating confident buying decisions. Main export markets include Asia, Africa, and the Middle East. Orders are processed swiftly upon receipt of a purchase order, with the machines dispatched promptly through reliable goods transport services. Flexible payment terms make acquisition simple and secure, ensuring smooth transactions and timely delivery for businesses of all sizes.

FAQ's of Double Layer Nut Sorting Machine:

Q: How does the Double Layer Nut Sorting Machine ensure accurate sorting?

A: The machine employs advanced photoelectric sensors and air-jet ejection technology, together with a PLC touchscreen control system, to deliver highly accurate sorting and grading of various nuts by size and quality.

Q: What types of nuts can be processed using this machine?

A: It is suitable for sorting cashew, peanut, almond, macadamia, pistachio, walnut, and other nuts within the size range of 2-23 mm.

Q: When is a sample of the Double Layer Nut Sorting Machine available for inspection?

A: Samples are available prior to placing a full order, allowing buyers to assess performance and suitability before final purchase.

Q: Where can this sorting machine be installed?

A: This machine is designed as a floor-standing unit and is typically set up in nut processing factories, production plants, or commercial food processing lines.

Q: What is the process for dispatch and transportation after the purchase order is placed?

A: Once a purchase order is confirmed and payment terms are met, the machine is carefully prepared and dispatched through reliable goods transport partners, ensuring secure and timely delivery.

Q: What benefits does the self-cleaning system provide to operators?

A: The self-cleaning system reduces maintenance requirements, enhances operational efficiency, and ensures ongoing accuracy in sorting without frequent manual intervention.
